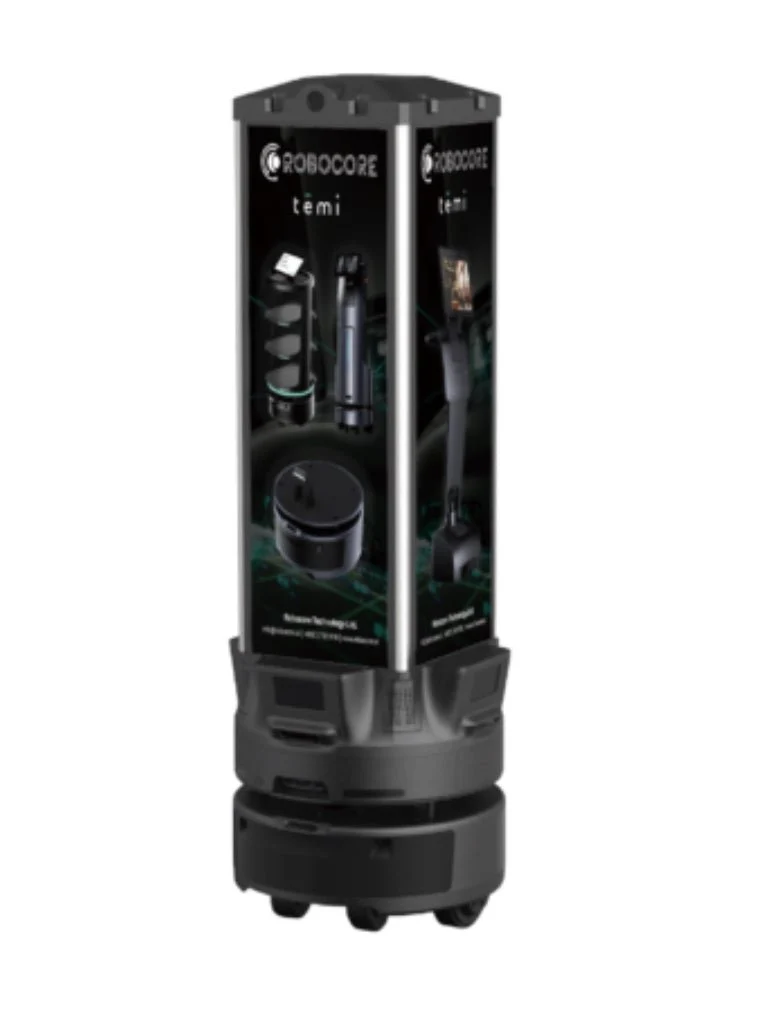

Robocore Fourcast by temi

Robocore Fourcast by temi

Mobile Advertising Robot – Built on the Temi Platform

Please note: lead time for the Robocore Fourcast once ordered is approximately two months after purchase.

Experience the future of advertising with our cutting-edge Mobile Advertising Robot, designed for high-performance autonomous navigation. Built on the Temi platform, this intelligent advertising robot seamlessly integrates multiple functional modules, including:

• Four-sided 38.8-inch screens

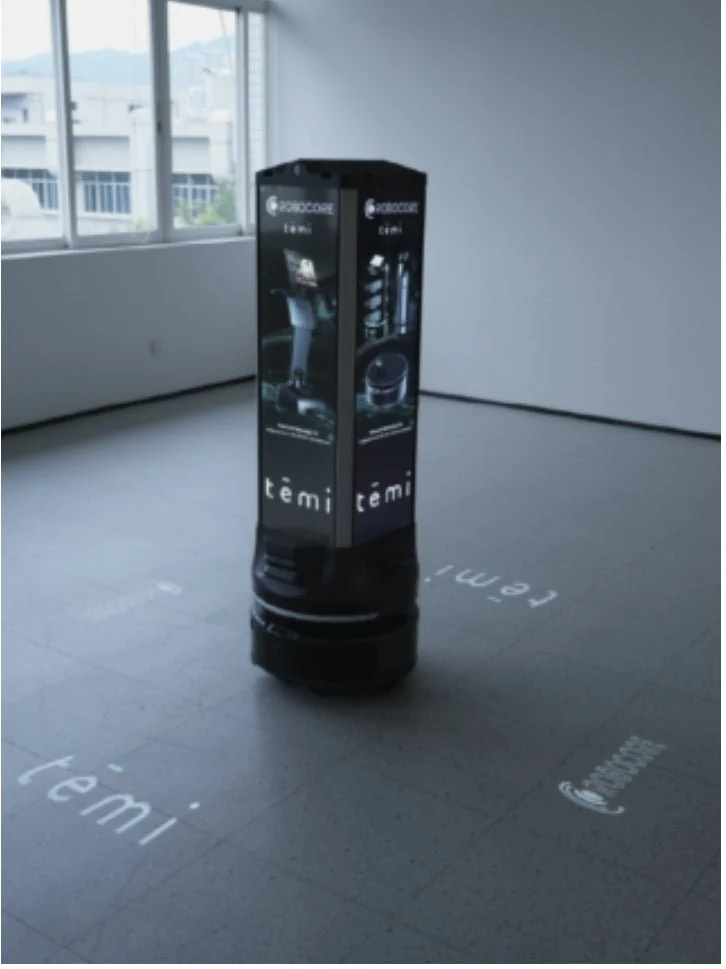

• Projectors for dynamic visuals
• Depth cameras & LiDAR for precise mapping
• Cliff sensors & obstacle detection cameras for enhanced safety

These advanced features allow businesses to deliver innovative, eye-catching, and interactive advertising experiences like never before.

Specifications

Weight

• Net Weight: 150 lbs

Size

• Diameter: 19.7 in.
• Height: 58.3 in.

Mapping & Navigation

• Max Map Size: 215,278 sq. ft.
• Number of Locations: 1,000

Floor Navigation

• Max Barrier Height: 0.47 in.
• Max Slope Angle: 5°
• Max Gap Width: 1.57 in.

Movement

• Linear Speed: 3.2 ft/sec
• Spin Radius: 0 in.

Sensors

• Detectable Obstacle Height: 4.7 – 59 in.
• Ground Obstacle Detection Range: 1.9 – 47 in.
• Minimum Detectable Ground Obstacle Height: 0.78 in.
• Minimum Cliff Height Detection: 0.78 in.
• LiDAR Range: 114.8 ft.

Display Screen

• Size: 37 x 10.6 in.
• Resolution: 1920 x 561
• Color Display: 16.7 million colors
• Voltage: 12V

Camera

• Frame Rate: 30 fps
• Resolution:
• Depth: 640 x 480
• RGB: 1280 x 800
• Distance Range: 12 – 137.8 in. (subject to lighting conditions)

Projection

• Projection Area: 17.3 – 20.5 x 16.5 in.
• Projection Distance: 17.7 – 35.4 in.
• Resolution: 854 x 480
• Brightness: 65 lumens
• Voltage: 5V

Battery & Power

• Operation Time:
• Normal Usage: 6 hrs
• Heavy Usage: 4 hrs
• Charging Time (0 – 100%)
• Power OFF: 4 hrs
• Power ON: 6 hrs
• Output Voltage:
• Upper Component: 29V
• Temi Platform (Output to Upper Component): 19.6 – 28.7V
• Capacity:
• Upper Component: 40Ah
• Temi Platform: 500W
• Charging Voltage:
• Upper Component: 25.2V
• Temi Platform: 29.4V

Charging Dock

• Dimensions (L x W x H): 7.9 x 12 x 10.8 in.
• Weight: 7.8 lbs
• Input Voltage & Current: 100 – 240V, 15A
• Output Voltage & Current: 29.4V, 20A

External Battery

• Dimensions (L x W x H): 19.7 x 19.7 x 2.6 in.
• Weight: 19 lbs

Support & Connectivity

• Wi-Fi & 4G Connectivity
• Web Interface: Robot Intelligent Advertising Management Platform

(Note: All specifications are subject to change.)
